ROOF PIPE SUPPORTS

PP10 with roller header
Back to Pipe Supports

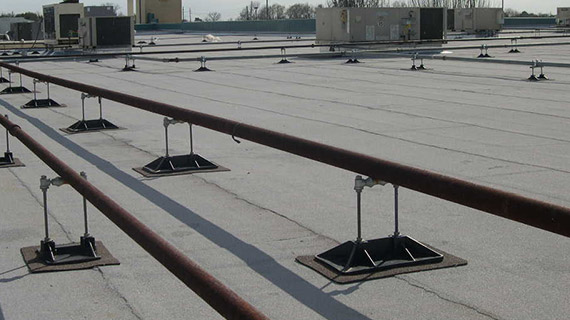

  • PP10 with Pipe Roller Support - gas pipe up to 3.5 on roof

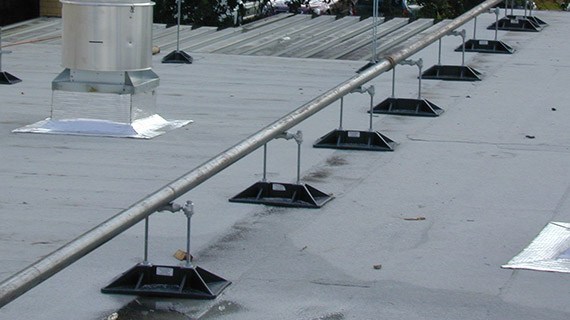

  • PP10 with roller gas pipe support

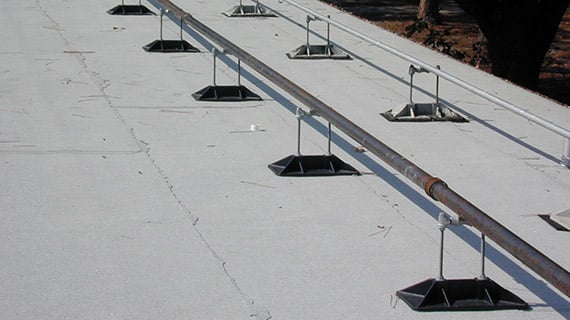

  • PP10 with roller design to support 3.5 gas pipe
  • PP10 with roller roof support for gas pipes
  • PP10 with roller roof sopport for gas pipe up to 3.5

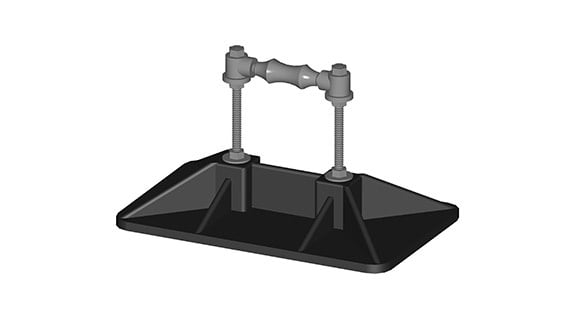

PP10 with Pipe Roller Support

for pipe sizes up to 3-1/2″ OD

Product information

The PP10 with Pipe Roller Support model is designed for gas pipes up to 3 ½” OD with a standard height of up to 12” above the roof surface. Available up to 16” height by request.

REQUEST PRICING
Resources

View

Installation Design & Quote

Downloads

PDF 2-D

Technical Resources

Spec Sheet (PDF) Product Specification (PDF)
Pipe Supports Product Flyer (PDF)

Available in High Wind and Seismic Applications
PHP System/Design

PP10-R Installation
New Pipe
  1. Layout isolation pads, (provided by contractor), according to the design and layout.
  2. Layout PP10-R supports per spacing specification or PHP layout.
  3. Run pipe on roller.
  4. Adjust channel until height and weight of system is evenly distributed.
Retro-fit
  1. Lift pipe enough to remove existing support.
  2. Clean area where new support is to be placed.
  3. Place ISO pad, (provided by contractor).
  4. Put PP10-R support on pad.
  5. Lower pipe onto roller.
  6. Adjust channel until height and weight of system is evenly distributed.
