ROOF PIPE SUPPORTS

SS8-R header
Back to Pipe Supports
  • SS8-R design of pipe support structures for gas pipes up to 2.5
  • SS8 R support for pipes up to 2.5

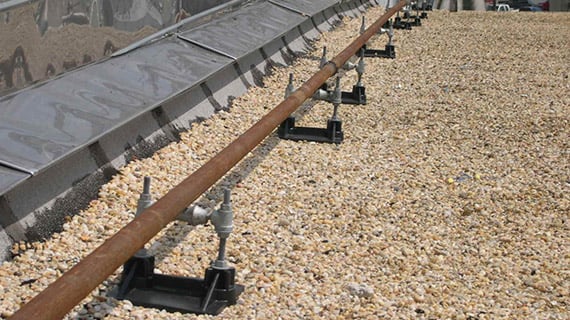

  • SS8 R support for gas pipes up to 2.5

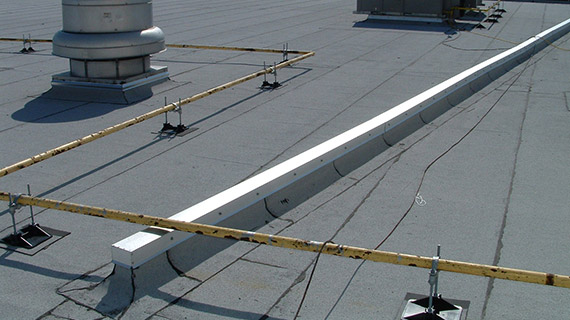

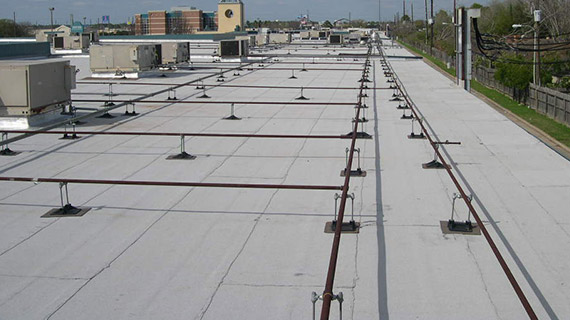

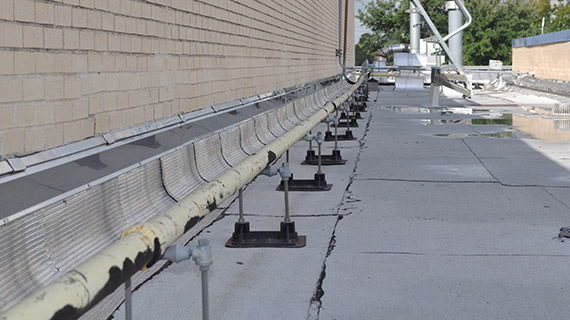

  • SS8 R gas pipe support up to 2.5 for roof

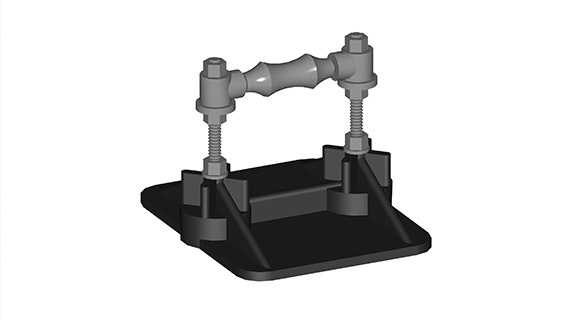

  • SS8 R model with roller to support gas pipes up to 2.5

SS8-R Pipe Support Structures

for pipe sizes up to 2-1/2″ OD

Product information

The SS8 with Roller-model's design of pipe support structures accommodates gas pipes up to 2 ½” OD and not exceeding 10” in height above the roof surface.

REQUEST PRICING
Resources

View

Installation Design & Quote

Downloads

PDF 2-D

Technical Resources

Spec Sheet (PDF) Product Specification (PDF)
Pipe Supports Product Flyer (PDF)

Available in High Wind and Seismic Applications
PHP System/Design

SS8-R Installation
New Pipe
  1. Layout isolation pads, (provided by contractor), according to the design and layout.
  2. Layout SS8-R supports per spacing specifications or PHP layout.
  3. Run pipe on roller.
  4. Adjust roller height so weight of system is evenly distributed.
Retro-fit
  1. Lift pipe, (enough to remove existing support).
  2. Clean area where new support is to be placed.
  3. Place ISO pad, (provided by contractor).
  4. Put SS8-R support on pad.
  5. Lower pipe onto roller.
  6. Adjust roller height so weight of system is evenly distributed.
