ROOF EQUIPMENT SUPPORTS

Back to Products

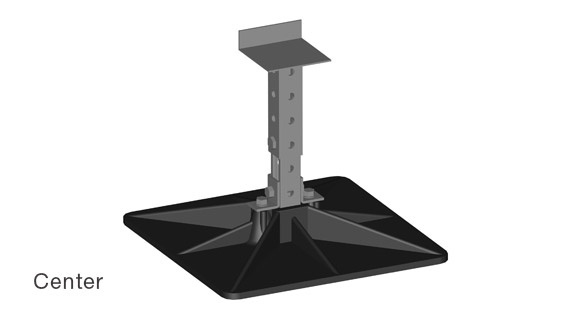

  • RTU-20 Equipment Roof Supports - Center

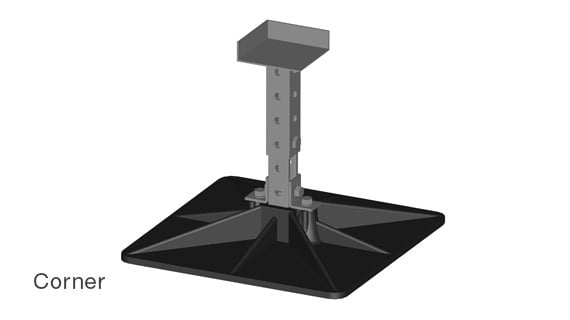

  • RTU-20 Equipment Roof Supports - Corner
  • RTU 20 corner model support

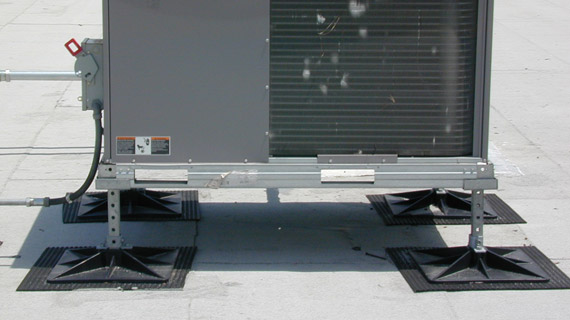

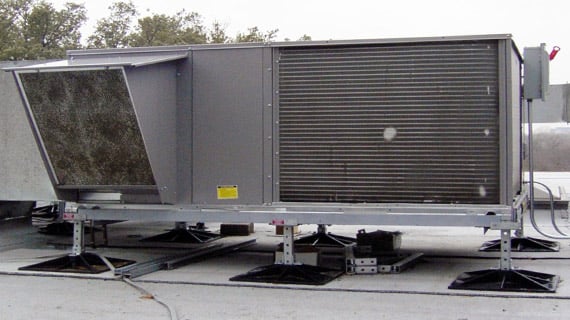

  • RTU 20 exhaust fans supports
  • RTU 20 corner supports exhaust fans

RTU-20 Center & Corner Equipment Roof Supports

Product information

The RTU-20 Center-and-Corner Equipment Roof Supports are designed for the corners of air handlers, blowers, and exhaust fans not exceeding 12” in height above the roof surface.

REQUEST PRICING
Resources

View

Installation Design & Quote

Downloads

PDF (Center) PDF (Corner) 2-D (Center) 2-D (Corner)

Technical Resources

Spec Sheet (Center) (PDF) Spec Sheet (Corner) (PDF) Product Specification (PDF)
Equipment Support Product Flyer (PDF)

Available in High Wind and Seismic Applications
PHP System/Design

RTU-20 Installation
New Equipment
  1. Layout isolation pads, (provided by contractor), according to the design and layout.
  2. Level and square supports before any weight is applied.
  3. Place equipment onto supports.
  4. Fine tune supports until the unit is level.
  5. Attach all thread or bracing to RTU-20 supports to hold all support units in place.
Retro-fit
  1. Lift equipment enough to remove existing support.
  2. Clean area where RTU-20 is to be placed.
  3. Place ISO pad provided by contractor.
  4. Put RTU-20 support on pad.
  5. Level and square supports before any weight is applied.
  6. Place equipment onto supports.
  7. Fine tune supports until the unit is level.
  8. Attach all thread or bracing to RTU-20 support to hold all support units in place.
RTU-20 Installation
