PHP-D Enclosed Duct Support

Product information

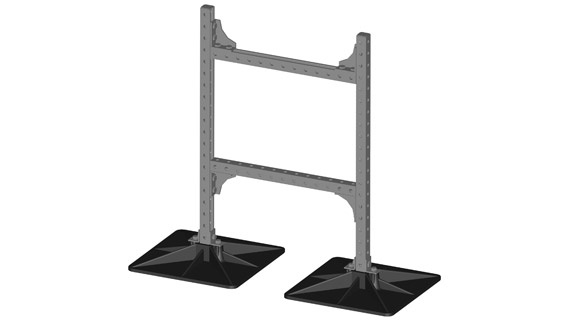

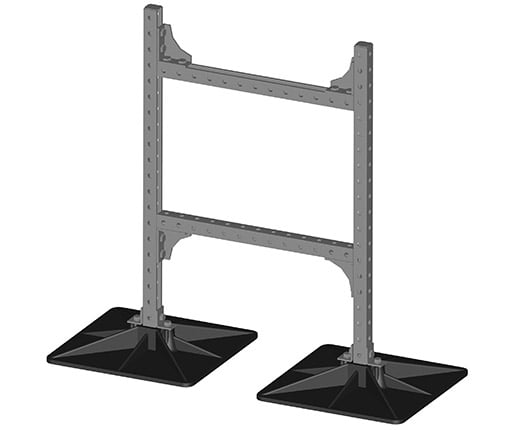

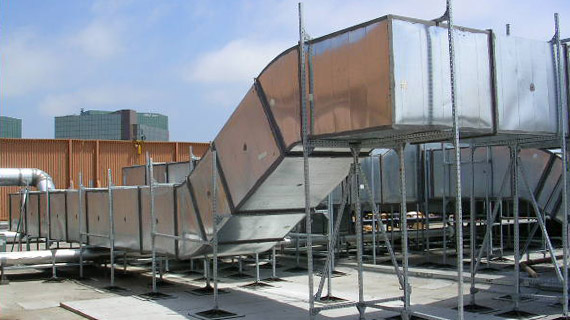

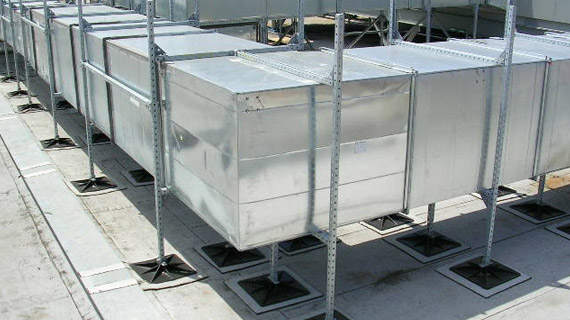

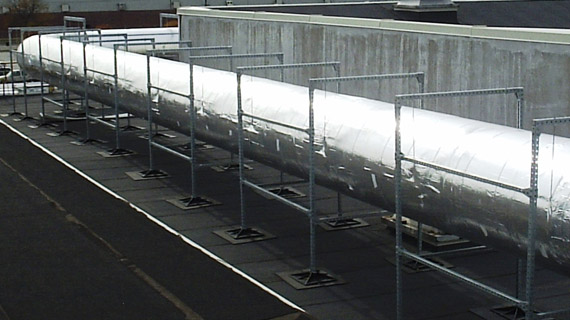

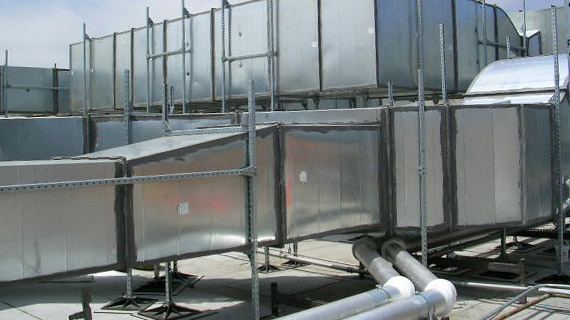

The PHP-D Enclosed model is designed to support any size of square or round duct at most any specified height above the roof surface. The support has an upper cross bar above the duct in an enclosed design.

PHP System/Design

PHP-D Enclosed Installation

  1. Layout isolation pads, (provided by contractor), according to the design and layout.
  2. Place bases on isolation pads.
  3. Insert the legs of duct support into bases and attach with 2-1/2” bolt and 1/2” nut.
  4. Space out pipe supports according to specifications. This should be done before any weight is supported.
  5. *Attach horizontal bracing to the legs of duct supports (approximately 3/4” of the way up the height of the support), with 3” bolt and 1/2” nut.
    NOTE: If double or triple bracing is required, designated locations will be marked on support legs.
  6. Adjust width up to bottom of duct.
  7. Make sure the duct and supports are level, both vertically and horizontally, and proper spacing is maintained per design specifications.
  8. Check that the weight of the ducting is distributed evenly throughout the system.

*Only if bracing is required.

PHP-D Enclosed Installation
