ROOF PIPE SUPPORTS

PP10 with channel header
  • PP10 with Channel and Pipe Support Brackets - electrical conduit - condensate drain lines

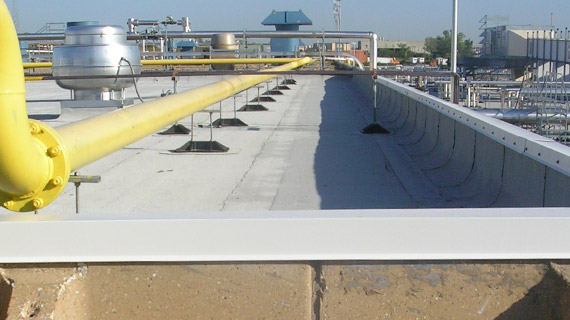

  • PP10 with Channel for pipes up to 3.5

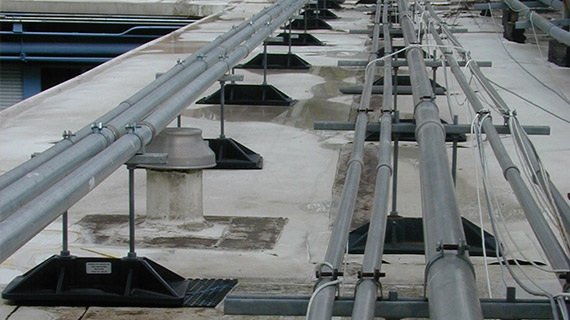

  • PP10 with Channel support electrical conduit lines

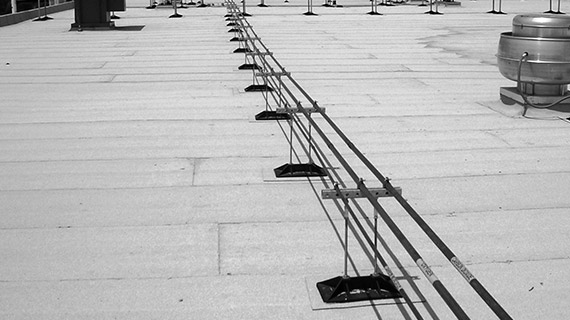

  • PP10 support for electrical conduit drain lines

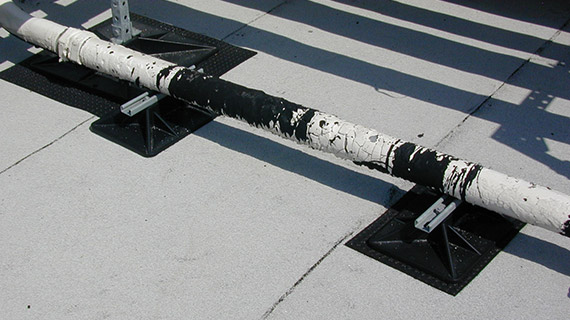

  • PP10 support for drain or refrigeration lines

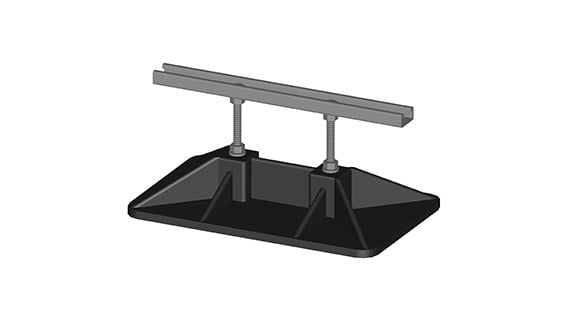

PP10 with Channel & Pipe Support Brackets

for pipe sizes up to 3-1/2″ OD

Product information

The PP10-Channel model with pipe support brackets  is designed to support electrical conduit and condensate drain lines or small refrigeration lines up to 3 ½” OD with a standard height of up to 12” above the roof surface. Available up to 16” height by request.

REQUEST PRICING
PHP System/Design

PP10-C Installation

New Pipe
  1. Layout isolation pads, (provided by contractor), according to the design and layout.
  2. Layout PP10-C supports per spacing specification or PHP layout.
  3. Run pipe on channel.
  4. Clamp down with channel clamp, (provided by contractor).
  5. Adjust channel until height and weight of system is evenly distributed.
Retro-fit
  1. Lift piping enough to remove existing support.
  2. Clean area where new support is to be placed.
  3. Place ISO pad, (provided by contractor).
  4. Put PP10-C support on pad.
  5. Lower pipe onto channel.
  6. Clamp down with channel clamp, (provided by contractor).
  7. Adjust channel until height and weight of system is evenly distributed.
