ROOF PIPE SUPPORTS

SS8 CL Low Profile header
Back to Pipe Supports

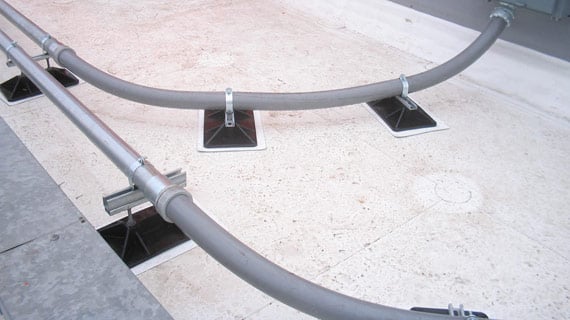

  • SS8 CL Low Profile Adjustable Pipe Supports - electrical conduit support

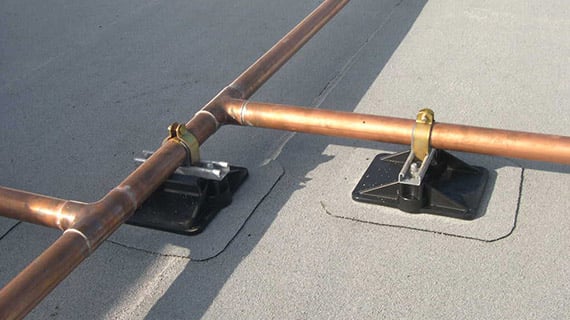

  • SS8 CL low profile support for lines
  • SS8 CL Model to support electrial conduit lines

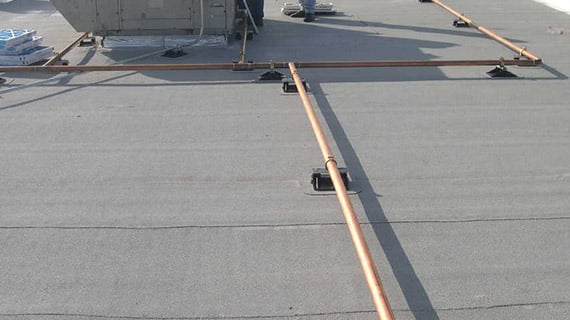

  • SS8 CL profile pipe support
  • SS8 CL low profile support
  • SS8 CL pipe support
  • SS8 low profile with channel
  • SS8 CL low profile support

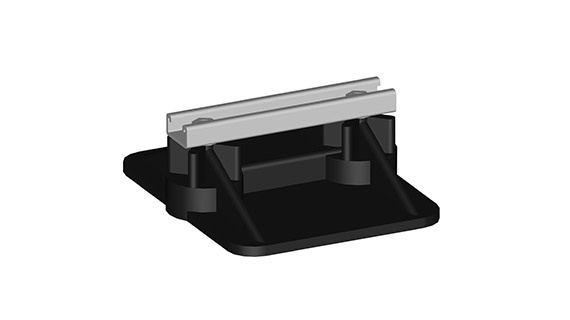

SS8-CL Low Profile Non-Adjustable Pipe Supports

for pipe sizes up to 2-1/2″ OD

Product information

The SS8 w/ Channel Low Profile-model non-adjustable pipe supports are designed to support electrical conduit, condensate drain lines or small refrigeration lines up to 2 ½” OD, set at 3 ½” above the roof surface.

REQUEST PRICING
Resources

View

Installation Design & Quote

Downloads

PDF2-D

Technical Resources

Spec Sheet (PDF) Product Specification (PDF)
Pipe Supports Product Flyer (PDF)

Available in High Wind and Seismic Applications
PHP System/Design

SS8-CL Installation
New Pipe
  1. Layout isolation pads, (provided by contractor), according to the design and layout.
  2. Layout SS8-CL supports per spacing specifications or PHP layout.
  3. Run pipe on channel.
  4. Clamp down with channel clamp, (provided by contractor).
Retro-fit
  1. Lift pipe, (enough to remove existing support).
  2. Clean area where new support is to be placed.
  3. Place ISO pad, (provided by contractor).
  4. Put SS8-CL support on pad.
  5. Lower pipe onto channel.
  6. Clamp down with channel clamp, (provided by contractor).
