Access & Equipment Platform

Product information

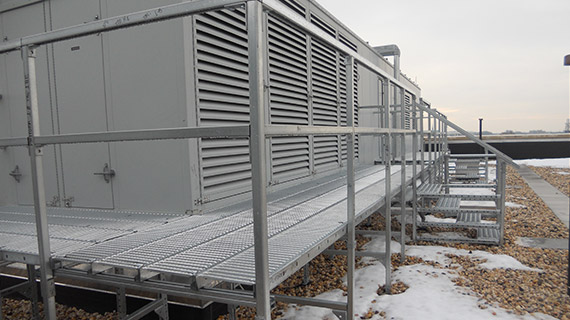

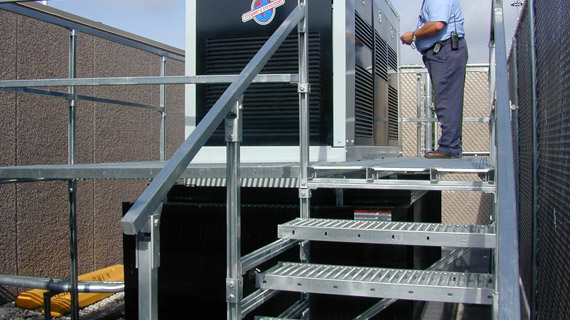

The PHP Access & Equipment Platform is designed to allow a safe means of access to elevated rooftop equipment.

REQUEST PRICING
Resources

View

Installation Design & Quote

Downloads

PDF 2-D

Technical Resources

Spec Sheet (PDF) Product Specification (PDF)
Platform Product Flyer (PDF)

Available in High Wind and Seismic Applications
PHP System/Design

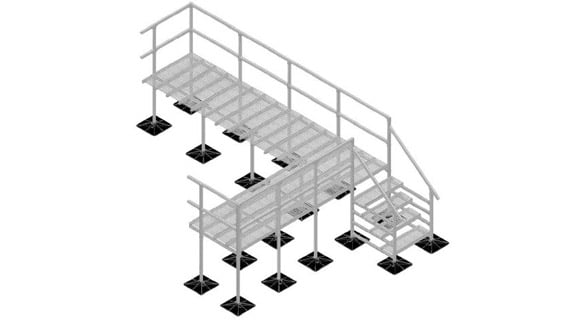

Access Platform Installation
  1. Layout isolation pads according to footprint of platform.
  2. Place bases on top of isolation pads.
  3. Place the set of stairs in bases according to diagram.
  4. Place planking for platform landing on 1-3/4” B-B Channel of the set of stairs.
  5. Attach planking to 1-3/4” B-B channel with hold-down clip.
  6. Set intermediate handrails on intermediate brackets and attach with 1” bolt and 1/2″ spring nut.
  7. Set top handrail on top brackets and attach with 1” bolt and 1/2” spring nut.
  8. Tighten all nuts, bolts and hold downs.
