Roof Crossover Systems

Product information

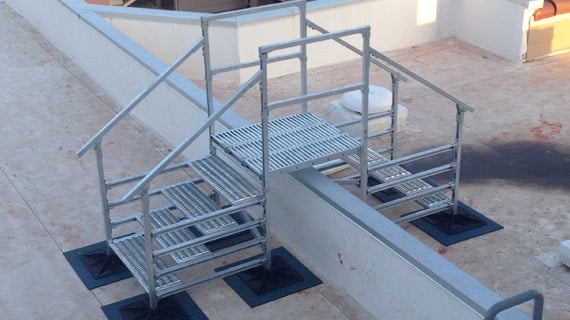

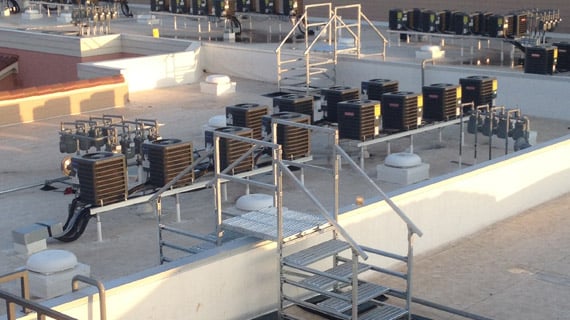

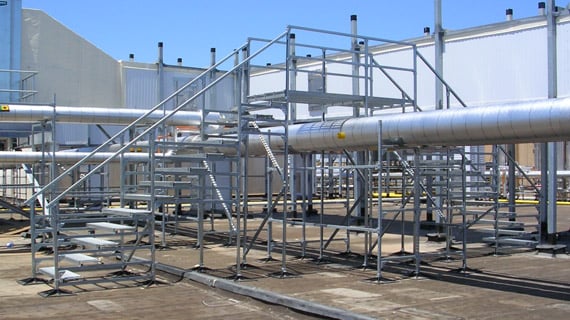

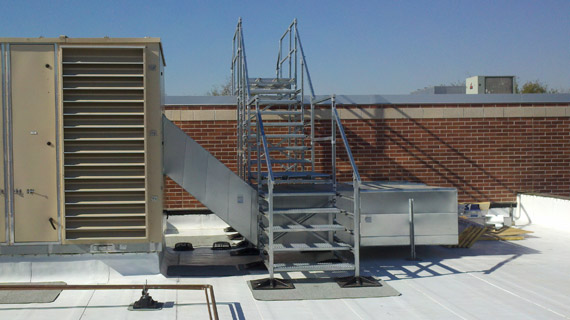

The PHP Roof Crossover system is designed to provide a safe means of access by crossing over any rooftop obstruction such as piping, ducting or equipment.

REQUEST PRICING

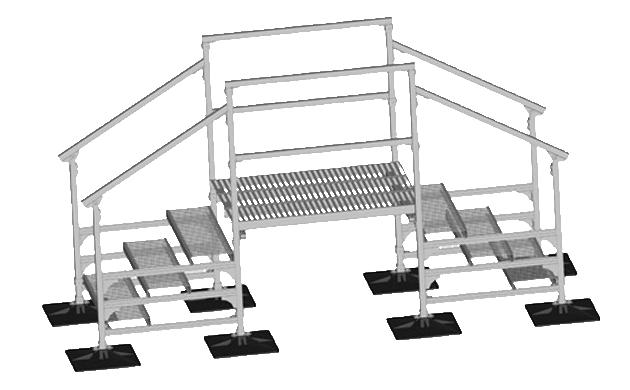

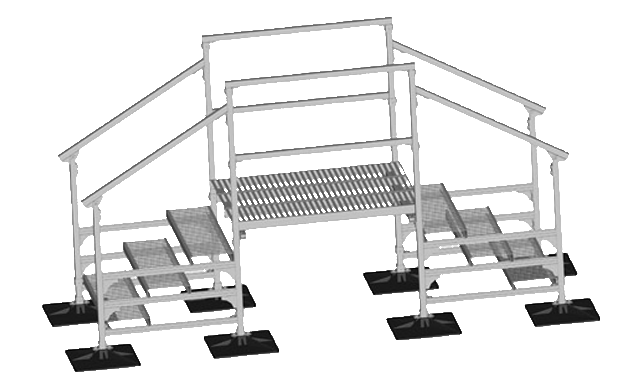

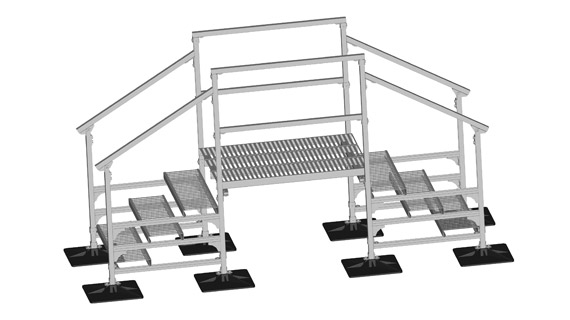

PHP System/Design

Crossover Installation

  1. Layout isolation pads according to footprint of crossover.
  2. Place bases on top of isolation pads.
  3. Place each set of stairs in bases according to diagram.
  4. Place planking for crossover landing on 1-3/4” B-B Channel of each set of stairs.
  5. Attach planking to 1-3/4” B-B channel with holddown clip.
  6. Set intermediate handrails on intermediate brackets and attach with 1” bolt and 1/2″ spring nut.
  7. Set top handrail on top brackets and attach with 1” bolt and 1/2” spring nut.
  8. Tighten all nuts, bolts and hold downs.
